Stainless Steel U Bend Tube ASTM A213 TP321
|Payment Type:||L/C,T/T,Western Union|
|Min. Order:||100 Kilogram|
|Delivery Time:||15 Days|
|Packaging:||Ply-wooden Case /Iron Case Packing, each radius separated|
|Productivity:||1500 tons per month|
|Place of Origin:||CHINA|
|Certificate:||ISO9001-2008, PED, BV, DNV, ABS, NK, KR, LR|
Model No.: Stainless Steel U Bend Tube ASTM A213 TP321 321H
Detailed Product Description
Stainless Steel U Bend Tube , ASTM A213 TP304/304L , TP316/316L , TP321/321H , TP310/310S U Bend Tube of stainless steel, Duplex Steel, Alloy Steel.
100% Hydro Test, Eddy Current Test . Ultraulic Test .
Stainless Steel U Bend Tube DIN 17458 EN 10216-5 , EN 10204-3.1B 1.4301, 1.4304, 1.4401
U-Bend Tube are widely used in Heat Exchanger Systems. Heat-Exchanger Equipment on the basis of
Seamless Stainless U-Tubes and Welded Stainless U bend Tube is essential in strategically important and
critical felds---Nuclear And Petrochemical Machine Building.
YUHONG Group Start to Produce U Bending Tube Since 2006,Up to now already supply more than
30000 tons Stainless Steel U Bend Tube to 35 countries.
The U-Bend Tube Comply With The Following Standards:
1. ASTM A688/ASME SA688
2. ASTM A803/ASME SA803
3. ASTM A556/ASME SA556
Tube Of Other Alloys And Steel Grades Can Be Produced Upon Agreement.
Straight Tubes Standard Specification For Bending:
ASME SA 213; ASME SB 163; ASME A789, ASME SA268, ASME SA269, etc.
Marking: Before Bending By Marking Machine All Over The Tube Length (Bent Section After Heat Treatment Without Marking)
Note: Marking is also possible After Bending On The Straight Parts Of U-Bending Tube.
-TEMA RCB 2.31 Standard Of The Tubular Exchanger Manufacturers Association (9th Edition).
-ASTM A688/ASME SA688 Standard Specification For Welded Tubes Of Austenitic Corrosion Resistant
Steel Grade Designed For Feed Water Boilers.
-ASTM B163/ASME SA163 Standard Techinical Requirements For Tubes Of Nickel And Nickel Alloy For
Condensers And Heat Exchangers.
Bending Radius: From 1.5*OD(Outside Diameter) To 1500mm
When Ordering Tubes With Radius less or equal to 1.5*OD, It Is Necessary To Agree Precision Of Geometrics.
Straight Tubes Maximum Length:(Before Bending): 35000 mm.
Leg Length: Min 1 Meter, Max. 16500 mm (For Max R=1500mm)
Note: Other Size Are Available Upon Agreement.
Heat Treatment: Stress Relieved After U-Bending (Bending Area Plus 300MM For Each Leg).
Hydrostatic Test After U Bending: Maximum Test Pressure 600 Bar, Soaking 10 Sec. With
Dematerialized Water. Compressed Air Cleaning After Hydro-Test.

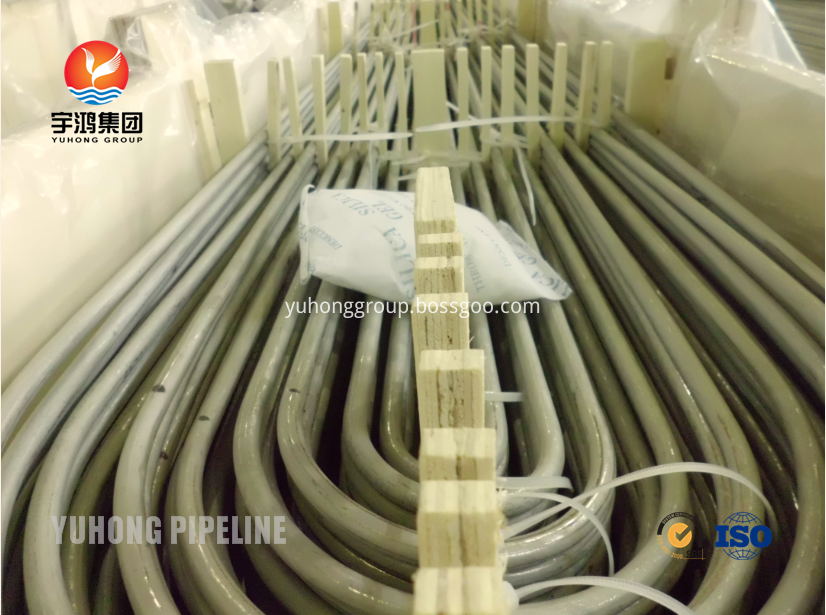

Packaging: In Strong Transport-Worthy Pre-fumigated wooden boxes of corresponding dimensions for
each tube Length, Radius, Diameter, According To PO requirements as well as wrapped In polyethylene
films With soft plastic caps on both end of Tube.
Some of the quality tests carried out by us includes:
|Corrosion Test||Conducted only when specially requested by the client|
|Chemical Analysis||Test done as per required quality standards|
|Destructive / Mechanical Testing||Tensile | Hardness | Flattening | Flare | Flange|
|Reverse-bend and Re. flat tests||Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end|
|Eddy Current Testing||Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System|
|Hydrostatic Testing||100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .|
|Air Under Pressure Test||To check any evidence of air leakage|
|Visual Inspection||After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections|
Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
| || || |
YUHONG GROUP CO.,LIMITED
Yuhong Group Co.,Limited is one of the largest Procurement Engineering and Contracting Group companies in China. Our group branch company and factory have been already approved by : ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004. Yuhong Group has expanded its field of activities and entered in trade and supply of tubular & flat products in Stainless Steel, Carnon steel, Alloy Steel as well as a series of special materials for our reputed clients worldwide. These products are widely used in various important sectors like Mining, Energy, Petrochemical, Chemical Industry, Food Plant, Paper Plant, Gas and Fluid Industry etc.
Yuhong Group has gained rich experience in Pipes, Fittings, Flanges, Valves, Structural steel, Coils and Plates in past seven years. In a short span of time, Yuhong Group has marked its global presence in more than 30 countries. We have successfully implemented the orders of Cross Country Pipelines for our valuable customers. In addition, we have also developed a huge network of contacts and strategic alliances with most important manufacturers an stockists around the world.
It allows us to offer highly competitive solutions with certified quality, complying with high standard of today's industry. In the supply chain of Yuhong Group,Stainless Steel Pipe and Tube, which are produces by our factories : Zhejiang Yuhongwell Steel Co.,Ltd , Zhejiang Zhongwu Tube Manufacturing Co.,Ltd , Jiangsu New Zhongzhou Special Alloy Materials Co.,Ltd etc. And all of other products' suppliers are approved by our QC department. About Stainless Steel Fittings & Flanges, our suppliers are approved by PED, AD2000, DNV, ABS, TS, GL, LR, KR, GOST, NK, etc. Similarly in Carbon steel pipe/tube/fitting, our suppliers are approved by API5L, API 5CT,API 5D, PED etc. When we place the order, it is our practice to follow the order start from raw material. After getting the material ready, our QC people make strict inspection again before loading the material. We will follow the whole processing of producing, marking ,packing and inspection before deliver to customer.
